Product Introduction
Art is an abbreviation of Advanced Realtime Tracking. It has been committed to the research and development and production of infrared optical tracking systems, and has applied good technology to product development, product manufacturing, marketing, product sales and customer support. It mainly provides customers with good virtual reality tracking solutions, and can optimize the configuration of products according to the different needs of each user, which can meet the application of industrial measurement, medical simulation and ergonomics in virtual reality and augmented reality.
Art adheres to the rigorous standard requirements of German industry, and all products are designed, produced and manufactured in Germany. Therefore, both the practicality, reliability and precision of the product have a good level of use.

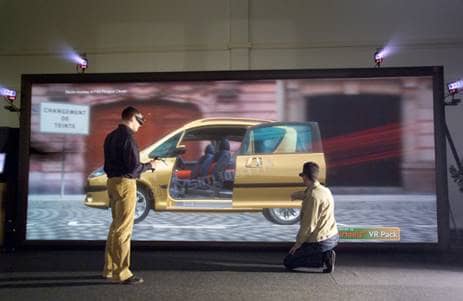

Application direction: VR virtual reality/AR augmented reality, industrial measurement, medical research, media industry applications.
Main customers: rail transit, automobile manufacturing industry, aviation, aerospace industry and other industries.
System Components
Art software DTrack2 controls all functions of the entire tracking system. The tracking system itself consists of a camera, interactive devices, targets and an arttrack or trackpack controller.
Introduction of main equipment
1. Tracking PC Optical Tracking Dedicated Host:
All art tracking systems use a “Tracking PC” optical tracking dedicated computer as the core element of data processing, which is able to calculate the 6 degrees of freedom position and orientation of the tracking kit through the DTrack software. The device is also equipped with SyncCard2, which enables the simultaneous operation of multiple cameras, and external components such as stereoscopic glasses can be installed as needed.
The Tracking PC is a standard PC, including a PCI board that allows the camera to work synchronously, with a second network interface for camera communication. This PC is used to run DTrack software. Due to the real-time nature of the DTrack software, no other software can be run on the PC.

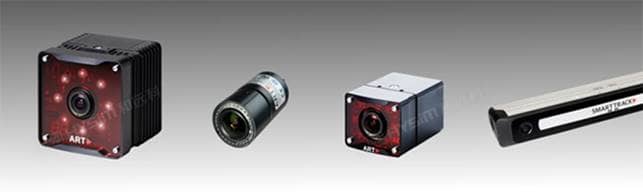

2. Tracking Camera:
All “tracking cameras” (ARTTRACK5, TRACKPACK, SMARTTRACK) equipped with the art system are smart cameras, and their auxiliary accessories include: low-noise CCD chips, “Field Programmable Gate Array” (FPGA) for marking data optimization analysis, and internal PCs responsible for all two-dimensional calculations. In addition, the camera is equipped with an infrared flash to illuminate the tracking target.
(1) art TRACK5 motion capture camera
ARTTRACK5 enhancements provide higher frame rate and resolution and increased flexibility for all motion tracking applications. The company has always adhered to the concept of creating accurate, reliable and stable motion tracking cameras.
Product Performance :
* Frame rate up to 300Hz
* 1.3 megapixel sensor resolution (full frame mode)
* Reduced installation time, only one cable per camera
* Integrated image processing
* Supports both active and passive objectives
* Built-in infrared led flash, 850nm wavelength
* 8-step adjustable flash intensity (controlled by DTrack2 software)
* 1 RJ45 CAT5) cable per camera for data output, synchronization and power supply
* ATC supports up to 8 cameras (art Tracking Controller)
* Support for more than 8 cameras via additional PoE + switches
Application scope:
It is suitable for human motion capture fields such as industrial environment, virtual reality environment, industrial simulation, scientific research and education.
(2) Marking points and exchange control equipment:
Tracking targets fall into many categories, including interactive devices dedicated to virtual reality, such as Flystick2, Fingertracking, or measurement tools, as well as non-interactive targets of various shapes, including stereoscopic glasses, head-mounted devices, and targets that conform to various parts of the human body.
